In stock
Product reference: M4545B. Dimensions / clear opening: 450mm x 450mm (17 3/4″ x 17 3/4″). Net weight: 17 kg (37.48 lb).
SEND THE INSTALLATION LOCATION, CLEAR OPENING, LOAD CLASS AND QUANTITY
In stock
Not ready to quote? Speak to the Team about load class, opening size or alternatives.
Technical documentation is available to registered project accounts.
Load class
B125 (12.5 tonne test load)
Clear opening
450mm x 450mm (17 3/4" x 17 3/4")
Frame overall
530mm x 530mm (20 7/8" x 20 7/8")
Frame depth
42mm (1 5/8")
Assembly weight
17kg (37.48 lb)
Material
Spheroidal graphite (ductile) cast iron to EN 1563:2018
Coating
Black coated finish
Seating
Single seal; airtight when packed with grease
Standard
BS EN 124-2:2015, Kitemark tested and certified by BSI

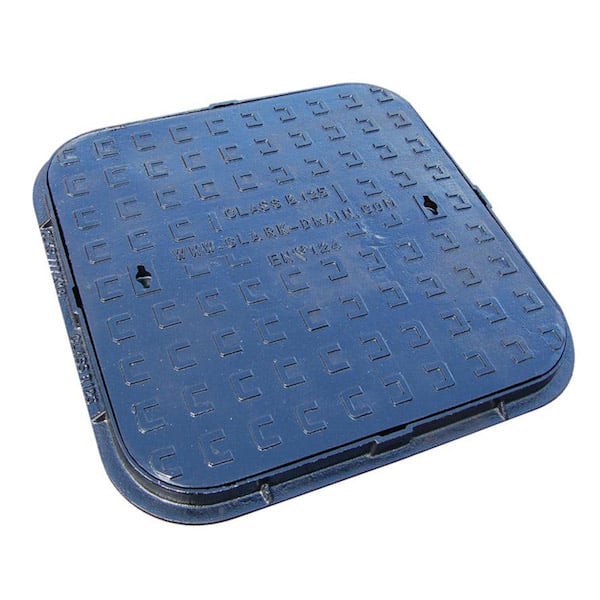

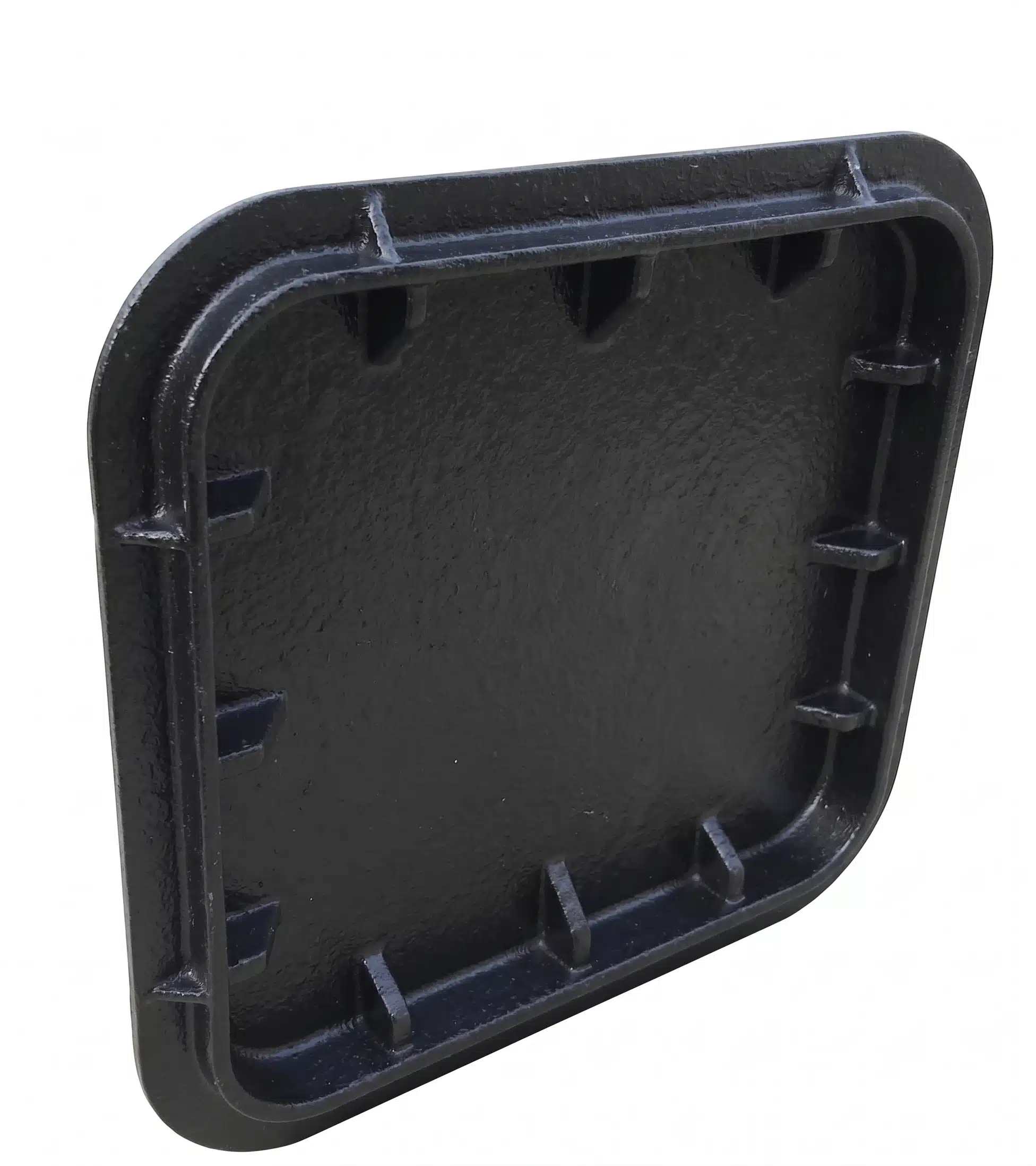

Class B125 (Group 2) ductile iron access cover for footways, pedestrian areas and comparable areas, car parks and car parking decks, where occasional vehicular access is likely.
